Electric drilling multi parameter instrument

Before placing an order, please contact the merchant's email at ：380549327@qq.com

All electric instrument display, all electronic sensors, no hydraulic components or pipelines, maintenance free.

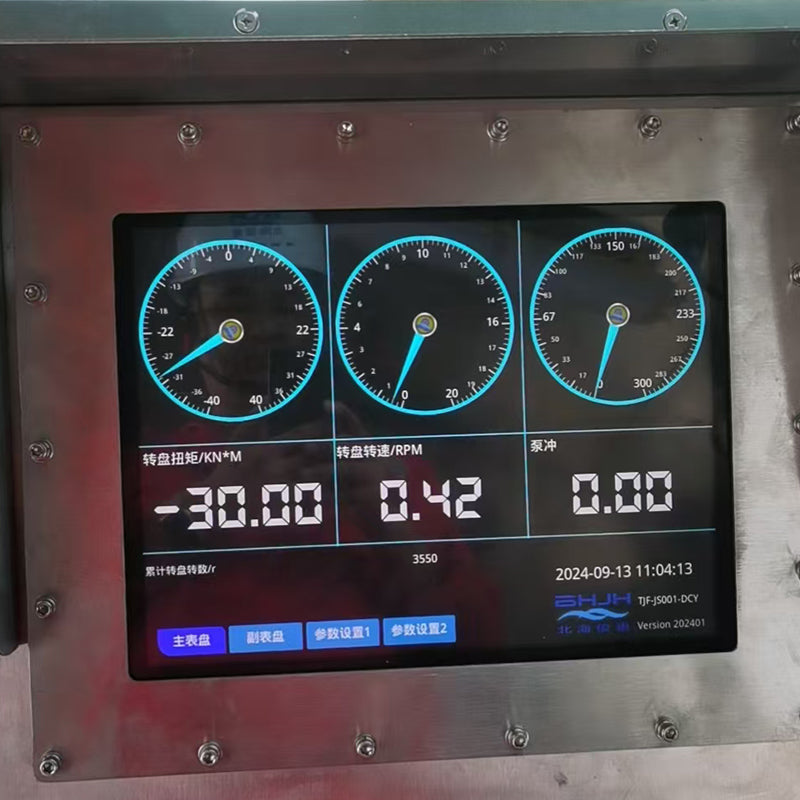

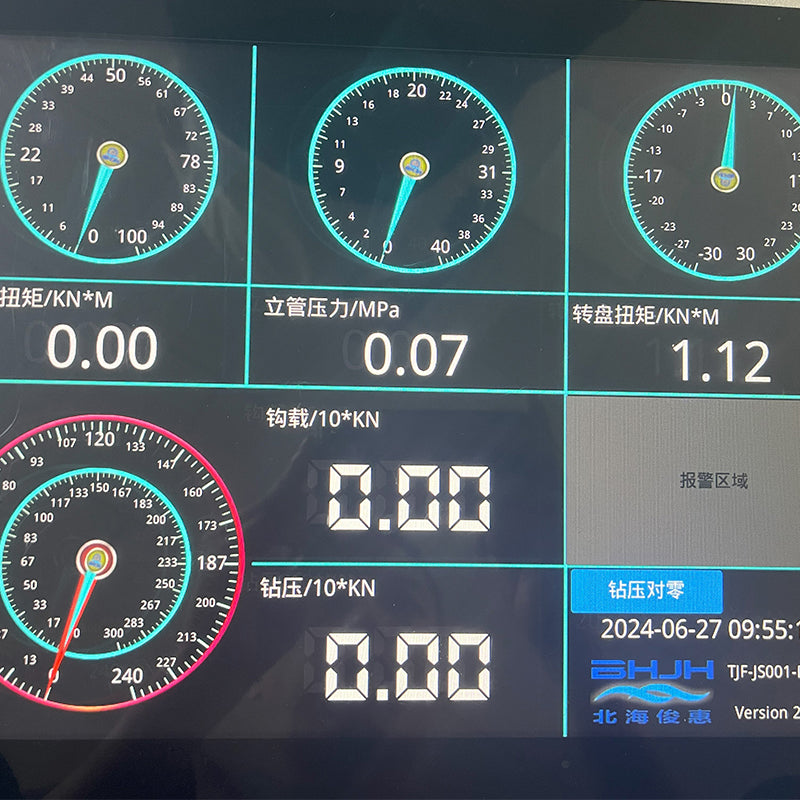

Collect and display parameters such as hook load, drilling pressure, height, speed, drilling depth, riser pressure, rotary table speed, rotary table torque, tong torque, pump stroke and cumulative pump stroke, mud tank volume, mud backflow, etc.

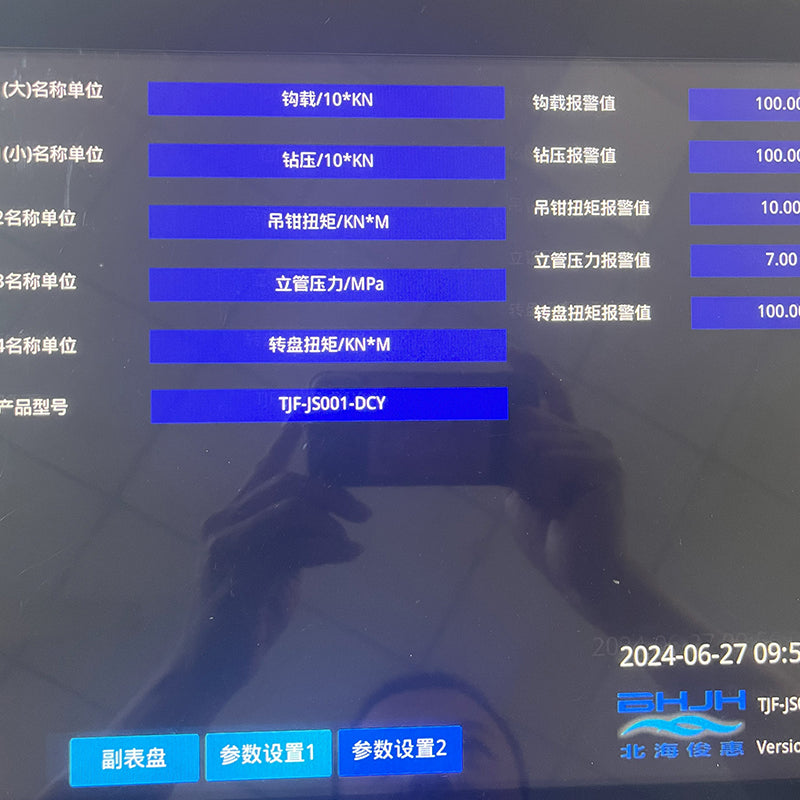

Front and rear display, integrated with functions such as alarm, recording, remote transmission, and communication with external systems.

Installation completed in one go, corrosion-resistant, no consumables required, no separate pressure transmitter required, no hydraulic pipeline accessories, seals, etc.

High precision, with an accuracy of 2-10 times that of a hydraulic gauge. Completely eliminate the phenomenon of "back pressure". The display is intuitive and the range can be easily adjusted.

Quick response. No hydraulic oil transmission delay, unaffected by slow hydraulic oil flow rate in winter.

Cost saving. Simple and reliable structure, integrated functions, fewer components, convenient installation, low replacement frequency, time-saving and cost-effective.

Modular structural design, easy to expand, and configure various parameters according to user needs.

Main technical Parameter

Power voltage：220VAC±20%, 50Hz±10%

Explosion proof grade：Ex db IIB T4 Gb

Connection： 2”#1502 Union, thread, flange, etc.

Output data：4-20mA、0~10V、485, etc.

Comprehensive Accuracy：≤0.5% F•S

Sensitivity：1.5~2.0mV/V

Zero Output：±1% F•S

Temperature Effect：±0.05% F•S/10℃

Environment Temperature：-20~+40℃（ -40`60℃ customizable）

Operating Temperature：-20~+40℃（ -40`60℃ customizable）

Explosion Proof Certifications：CNEX/ATEX

Material：Alloy Steel

System languages：Chinese/English/Russian
