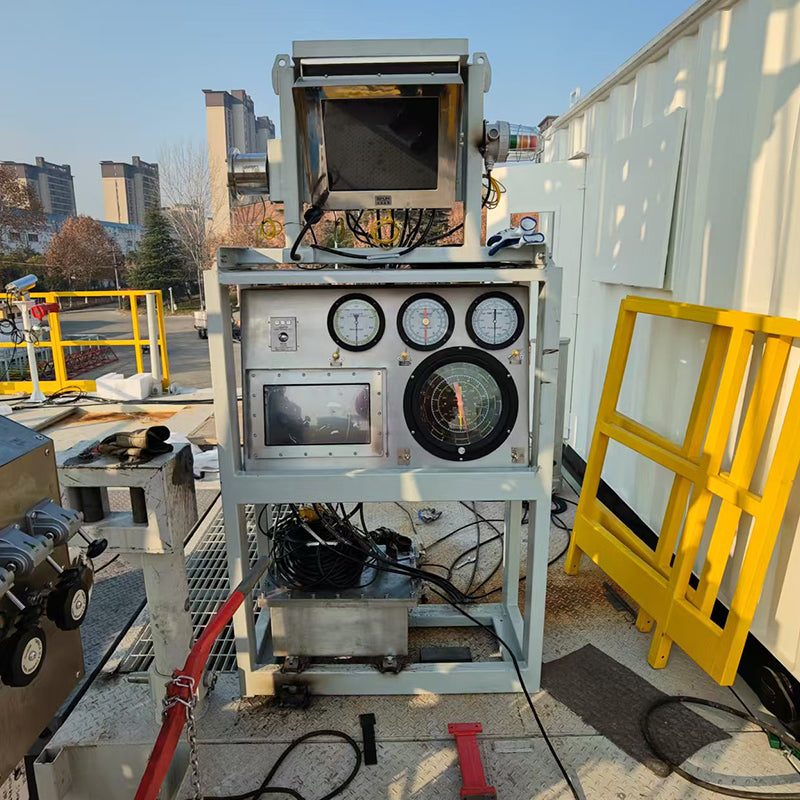

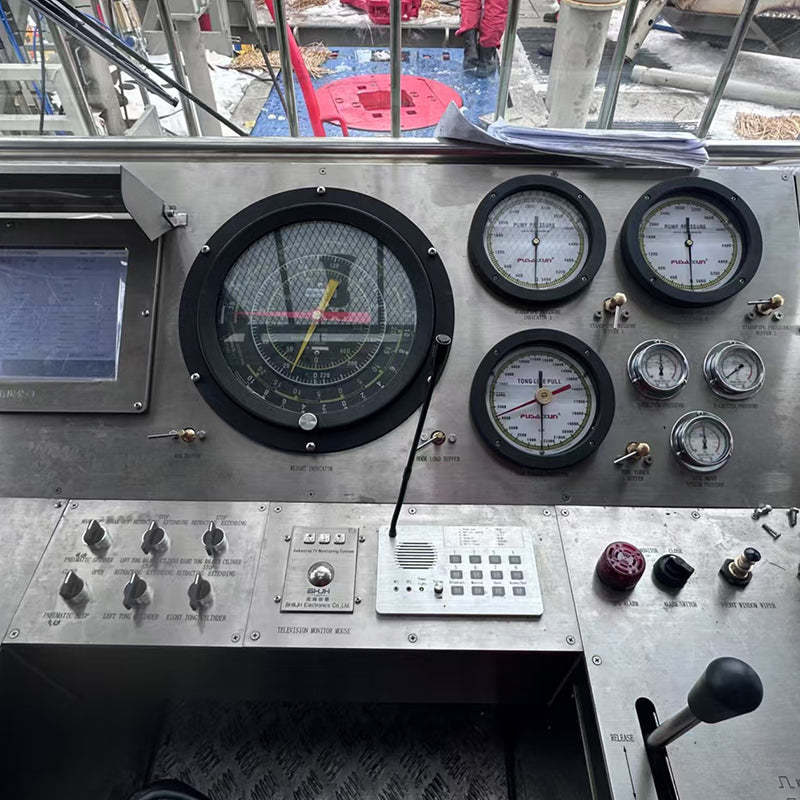

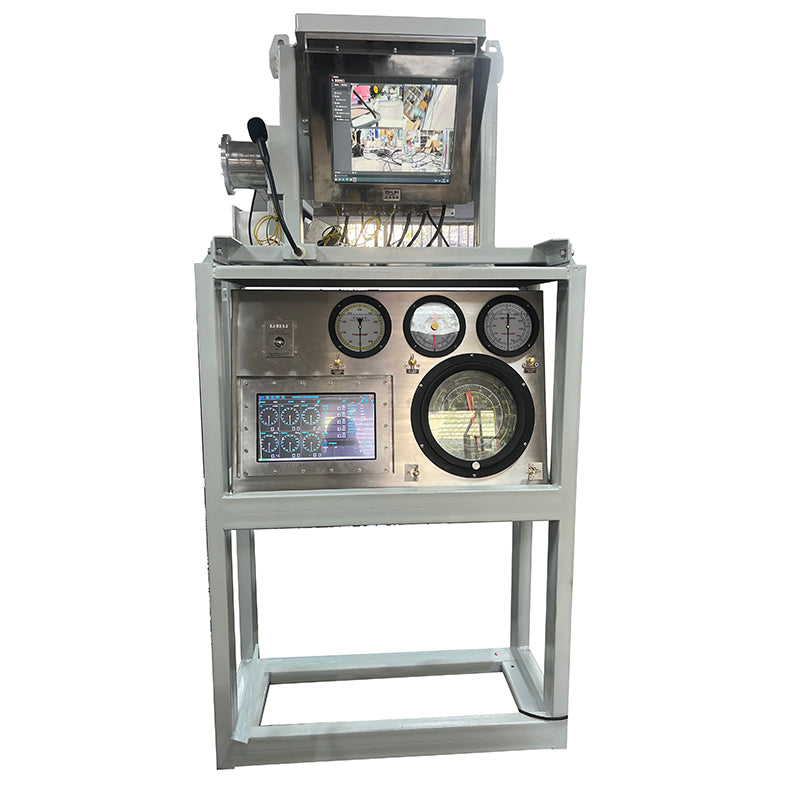

Drilling multi parameter instrument

Before placing an order, please contact the merchant's email at ：380549327@qq.com

Collect and display parameters such as hook load, drilling pressure, riser pressure, rotary table speed, rotary table torque, tong torque, pump stroke and cumulative pump stroke, mud tank volume, mud backflow, etc.

Front and rear display, integrated with functions such as alarm, recording, remote transmission, and communication with external systems.

Modular structural design, easy to expand, and configure various parameters according to user needs.

Main technical Parameter

Power voltage：220VAC±20%, 50Hz±10%

Explosion proof grade：Ex db IIB T4 Gb

Connection：2 #1502 Union, thread, flange, etc.

Environment Temperature：-25~70℃

Operating Temperature：-20~65℃

Explosion Proof Certifications：CNEX/ATEX

Material：Alloy Steel

System languages：Chinese/English/Russian
